TRXAMADRM - A LINUX PROGRAM FOR SENDING AND RECEIVING DIGITAL SSTV
FEATURES
- L.F. Audio I/O to and from computer soundcard
- Uses HB9TLK's HAM DRM standard modes A, B and E (compatible with WINDRM etc.)
- Uses ALSA soundsystem that is available in most Linux distributions
- Sends all file types
- Shows tx progress with current transmitted segment number and
total number of segments

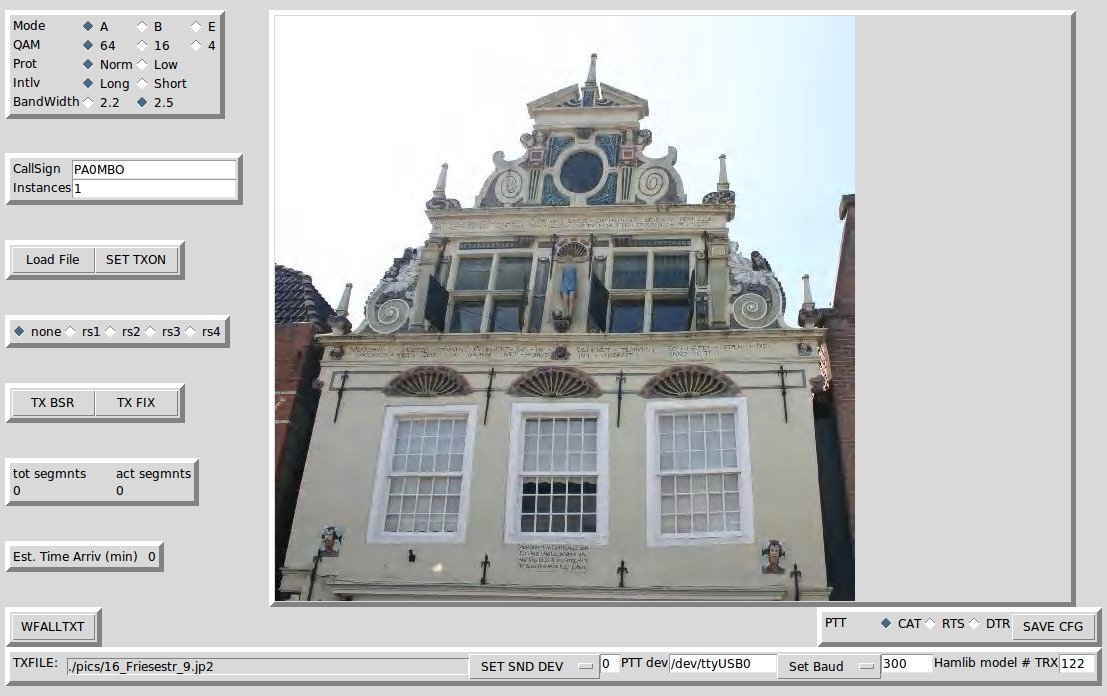

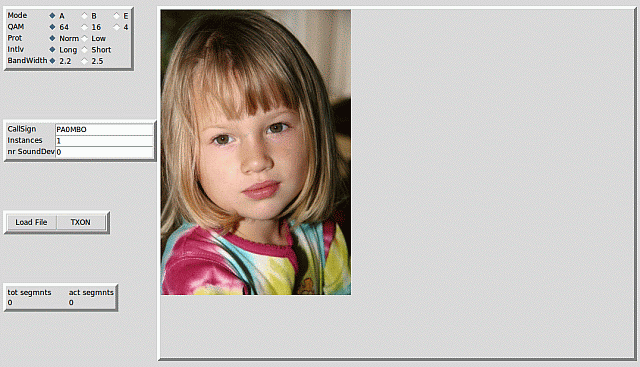

- Graphical User Interface can easily be adapted to one's own taste (Tk/Tcl)
- Includes standalone console application for txing from commandline
- Tx uses the well know Dream DRM software modified for ham use
- Rx based on MATLAB program Diorama
- GUI written in Tk/Tcl
- PTT CAT control via hamlib (July 2012)
- TX waterfall text (Sep 2012)
- RTS/DTR PTT and BSR/FIX (oct 2012)
- Special version for LIMA-SDR with direct I/Q input/output and QRG control (Jan 2013)
- Recalculation of ETA after change of tx-parameters
- Setting of FTP parameters in GUI (Feb 28th 2013)
- Progress bar of received segments with SNR (May 13th 2013)
- Log file for received pictures with date/time stamp SNR and callsign (May13th 2013)
- EasyPals'hybrid mode for rx (August 21st 2013)
- EasyPals'hybrid mode for tx and dsp optimisation (Dec 22nd 2013)
- Compatibility with EasyPals' hybrid mode version Oct 2014 and compiles Ok with gcc-4.8)
DOWNLOADS
Here are the download links for the documentation and the software: (Mar 2021)
